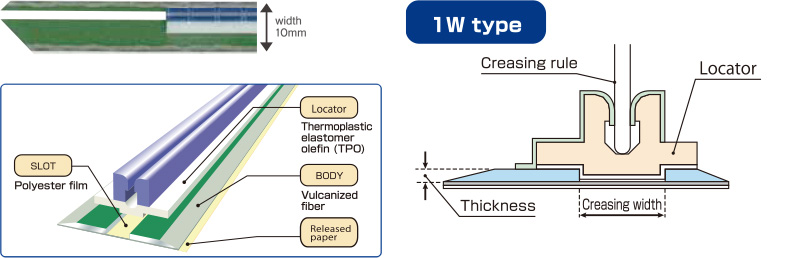

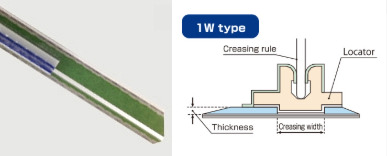

1W type (Off-center with side taper, 2-3pt creasing rule )

1W type (Off-center with side taper, 2-3pt creasing rule )



Unit = mm

Features

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change.

Width10mm
Length700mm

Size

NameThicknessCreasing width
1W-04140.41.4
1W-05150.51.5
1W-05170.51.7
