Unit = mm
Features
The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types.
G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.

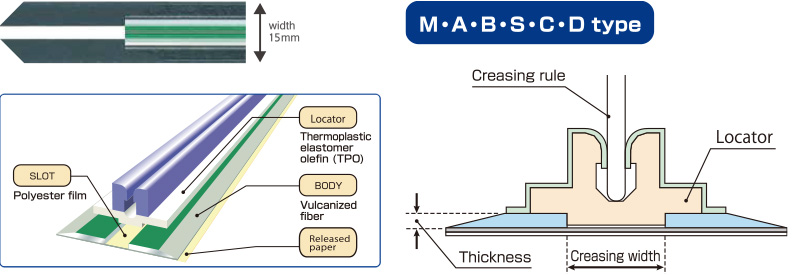

| Width | 15mm |
|---|---|
| Creasing rule | 4pt 1.4mm |
| Length | 700mm |
Size

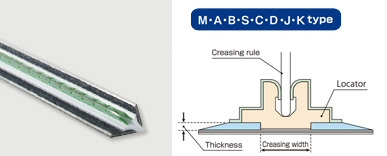

| Name | Thickness | Creasing width |
|---|---|---|
| B-0622 | 0.6 | 2.2 |
| B-0624 | 0.6 | 2.4 |
| B-0627 | 0.6 | 2.7 |
| B-0630 | 0.6 | 3.0 |
| B-0632 | 0.6 | 3.2 |
| B-0635 | 0.6 | 3.5 |
| B-0640 | 0.6 | 4.0 |
| B-0645 | 0.6 | 4.5 |
| B-0650 | 0.6 | 5.0 |
| B-0725 | 0.7 | 2.5 |
| B-0727 | 0.7 | 2.7 |
| B-0730 | 0.7 | 3.0 |
| B-0732 | 0.7 | 3.2 |
| B-0735 | 0.7 | 3.5 |
| B-0827 | 0.8 | 2.7 |
| B-0830 | 0.8 | 3.0 |
| B-0832 | 0.8 | 3.2 |
| B-0835 | 0.8 | 3.5 |
| B-0840 | 0.8 | 4.0 |
| B-0845 | 0.8 | 4.5 |
| B-0850 | 0.8 | 5.0 |
| B-0860 | 0.8 | 6.0 |
| B-1030 | 1.0 | 3.0 |
| B-1032 | 1.0 | 3.2 |
| B-1035 | 1.0 | 3.5 |
| B-1040 | 1.0 | 4.0 |
| B-1045 | 1.0 | 4.5 |
| B-1050 | 1.0 | 5.0 |
| B-1060 | 1.0 | 6.0 |
