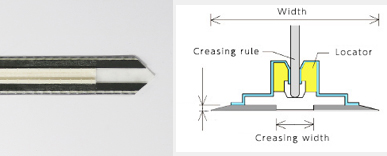

E type (4mm creasing rule, width 20mm)

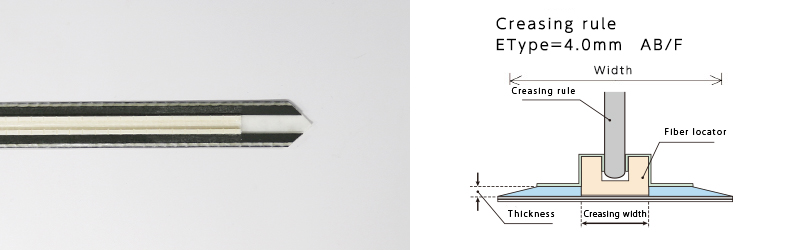

E type (4mm creasing rule, width 20mm)



Unit = mm / Hardness = ASKER C/SRIS 0101

Features

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.

Width20mm
Creasing rule4mm
Length700mm

Size

NameThicknessCreasing widthCreasing rule
★E-08800.88.04mm
★E-10801.08.04mm
