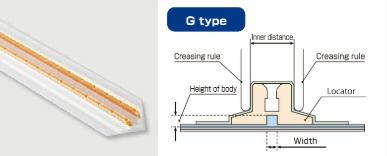

G type (Reverse crease)

G type (Reverse crease)



Unit = mm / Hardness = ASKER C/SRIS 0101

Features

The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.

G-1 Width10mm
G-2-5 Width15mm
Length700mm

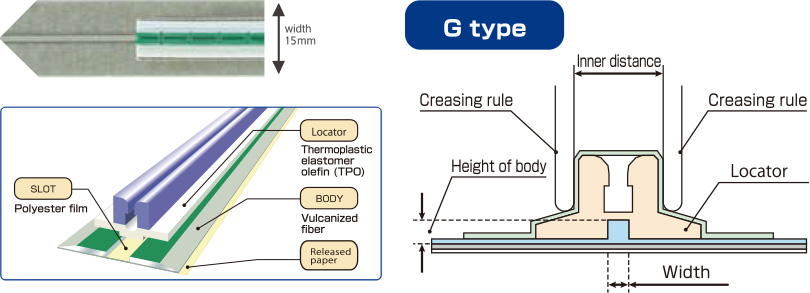

Size

NameThickness WidthInner distance
G-10.60.71.7
G-20.81.02.4
G-31.01.53.0
G-41.02.04.0
G-51.03.05.0
G-61.03.06.0
