Unit = mm
Features

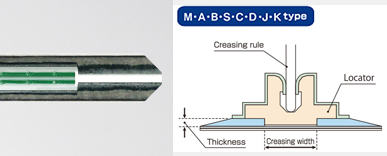

For corrugated board, it would be more suitable to use K type at the folding lines, where clearance space is limited or not enough for B type.

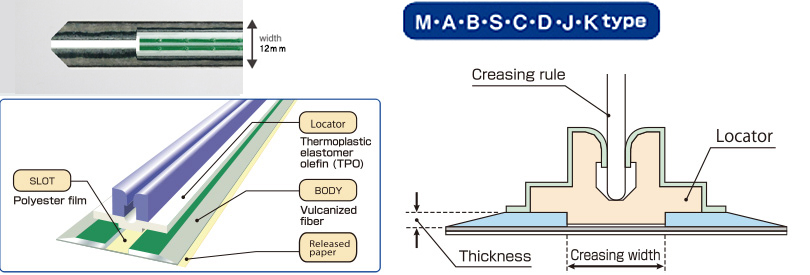

The material is the same Vulcanized Fiber, which assures you the same accuracy and durability of B type.
| Width | 12mm |
|---|---|
| Creasing rule | 4pt 1.4mm |
| Length | 700mm |
Size
| Name | Thickness | Creasing width |
|---|---|---|
| K-0622 | 0.6 | 2.2 |
| K-0624 | 0.6 | 2.4 |
| K-0627 | 0.6 | 2.7 |
| K-0630 | 0.6 | 3.0 |
| K-0822 | 0.8 | 2.2 |
| K-0824 | 0.8 | 2.4 |
| K-0827 | 0.8 | 2.7 |
| K-0830 | 0.8 | 3.0 |
