Unit = mm / Hardness = ASKER C/SRIS 0101
Features
The best creasing matrix to prevent creasing cracks in diecutting process. Wide selection from 155 standard to custom-made sizes, that satisfy any kind of requests from the customers. One touch setting makes it much easier even to set double-creasing types. G-Tape had passed hundred of thousands punch tests, and works very well between 200,000 and 300,000 presses in normal use. G-Tape can be used up to a half million presses without a set-change. International patented matrix cutter, VS-IV and G-Tape is the best solution for your productivity.
| Width | 20mm |
| Creasing rule | 1.4 |
| Length | 700mm |
- KW-01/02/03 B/F (against grain direction)
- KW-04/05/06 B/F (along grain direction)

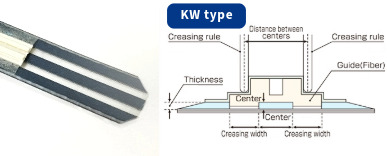

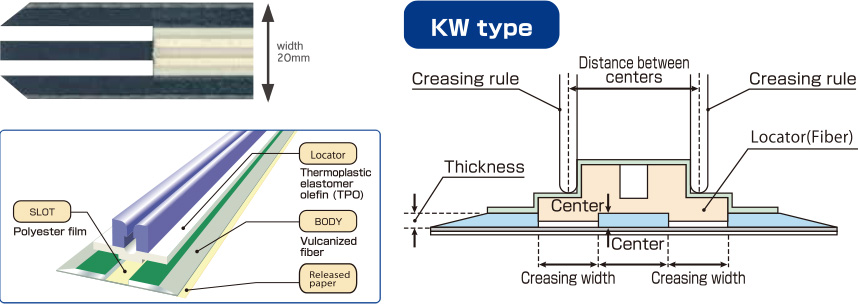

Size
| Name | Thickness | Creasingwidth | Distance between centers | Creasing rule | Center |
|---|---|---|---|---|---|
| KW-01 | 0.6 | 3.0 | 6.0 | 4pt 1.4mm | 0.6×3.0 |
| KW-02 | 0.6 | 3.0 | 7.0 | 4pt 1.4mm | 0.6×4.0 |
| KW-03 | 0.6 | 3.0 | 8.0 | 4pt 1.4mm | 0.6×5.0 |
| KW-04 | 0.8 | 3.2 | 6.0 | 4pt 1.4mm | 0.4×3.0 |
| KW-05 | 0.8 | 3.2 | 7.0 | 4pt 1.4mm | 0.4×4.0 |
| KW-06 | 0.8 | 3.2 | 8.0 | 1.4pt 1.4mm | 0.4×5.0 |
