Unit = mm

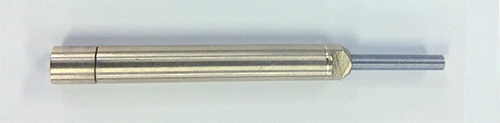

AD Under pin
Features
- Capable to strip crowded scraps or lots of holes.
- Reduce setting up time.
- Cost saving for repeated diecut orders.
Specification

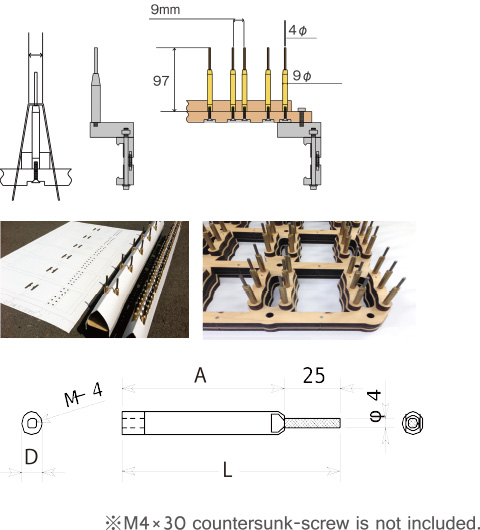

| Name | Edge diameter | Length (L) | Bottom diameter (D) | Body length (A) |
|---|---|---|---|---|
| AD Under pin (standard) | 4 | 97 | 9 | 72 |
| AD Under pin (soft) | 4 | 97 | 9 | 72 |
※M4×30 countersunk-screw is not included.
