Unit = mm

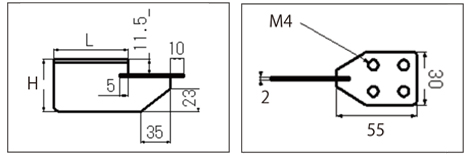

M-1
Features
- For female stripping board. Stripping blade area and machine side-bar striping area.
Specification
| Name | Height (H) | Length (L) |
|---|---|---|
| M-1 25ｘ50 | 25 | 50 |
| M-1 25ｘ150 | 25 | 150 |
| M-1 25ｘ300 | 25 | 300 |
| M-1 32ｘ50 | 32 | 50 |
| M-1 32ｘ150 | 32 | 150 |
| M-1 32ｘ300 | 32 | 300 |
| M-1 35ｘ50 | 35 | 50 |
| M-1 35ｘ150 | 35 | 150 |
| M-1 35ｘ300 | 35 | 300 |
| M-1 50ｘ50 | 50 | 50 |
| M-1 50ｘ150 | 50 | 150 |
| M-1 50ｘ300 | 50 | 300 |
Base
Features
- Base area for M-1.
Specification
| Name | size |
|---|---|
| Base | 30ｘ55 |

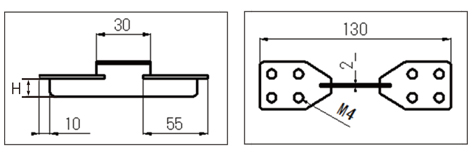

M-2
Features
- For female stripping board. Stripping area in slot (up to 20mm).
Specification
| Name | Height (H) | Length (L) |
|---|---|---|
| M-2 (12) Silver | 12 | 30 |
| M-2 (25) Silver | 25 | 30 |
| M-2 (32) Gold | 32 | 30 |
